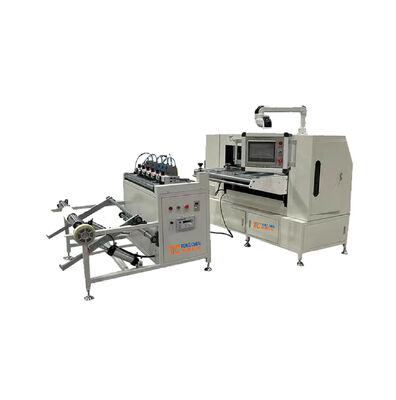

Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine

1
MOQ
$45000~55000
가격
Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
전산화: 예
보증시간: 1년
주름 가공 속도: 0-140주름/분
조정할 수 있는 주름 가공 높이: 8-65mm
최대 너비: 800mm
보증 서비스 후: 1년
강조하다:

full-auto filter paper pleating machine

,

high-precision blade filter folding line

,

knife-tape pleating machine for filter paper
기본 정보
원래 장소: 안후이, 중국
브랜드 이름: TONGCHEN
인증: ISO
모델 번호: TC-5569
결제 및 배송 조건
포장 세부 사항: 나무 상자
배달 시간: 30
지불 조건: 티/티
공급 능력: 15
제품 설명
Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine
The Fully Automatic Servo Knife Folding Paper Production Line is a high-efficiency pleating system designed for precise and uniform folding of filter paper, wire mesh, and non-woven fabric. It utilizes an upper and lower knife alternation folding method, enabling adjustable folding heights and stable operation. Custom specifications are available to meet specific customer requirements.

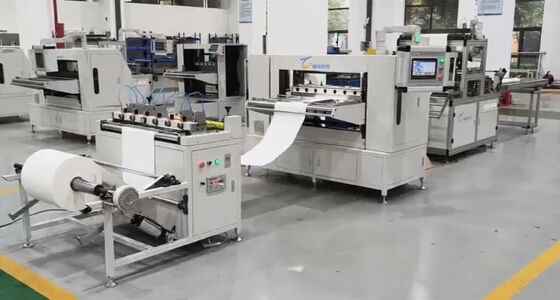

Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine 0
Technical Specifications
Pre-cutting Paper Conveying Machine
Specification Value
Paper Conveying Speed 0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper 25 - 850mm
Power Supply Voltage 220V / 50Hz
Motor Power 0.55 kW
Working Air Pressure 0.6 Mpa
Machine Weight 250 kg
Dimensions (L × W × H) 1280 × 1100 × 1200 mm
Folding Machine
Specification Value
Maximum Product Width 850 mm
Adjustable Folding Height 5-100 mm (depending on material)
Folding Speed 0 - 280 folds/min (stepless adjustable)
Power Supply Voltage 380V / 50Hz
Main Motor Power 1.5 kW
Lifting Motor Power 0.4 kW
Preheating Power 6 kW
Working Air Pressure 0.6 Mpa
Machine Weight 450 KG
Dimensions (L × W × H) 1800 × 1900 × 1650 mm

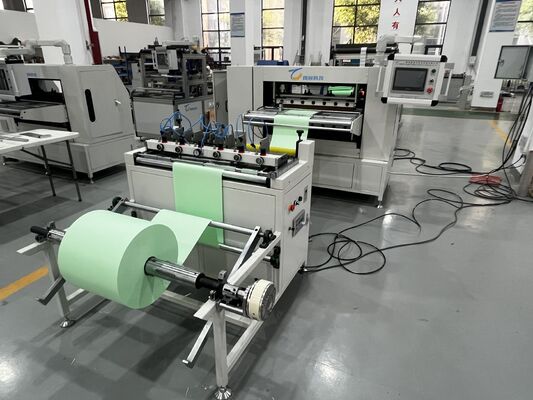

Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine 1
Key Features & Advantages
  • Fully Automatic Operation: Integrates paper feeding, pre-cutting, counting, and folding for smooth workflow
  • High Precision Folding: Knife-type mechanism ensures neat and consistent pleats
  • Adjustable Speed and Height: Flexible for different materials and filter specifications
  • Energy-Efficient Heating System: Fast preheating with precise temperature control
  • User-Friendly Control Panel: Simple operation with digital adjustments and safety design
  • Stable Performance: High-quality components ensure long-term durability and low maintenance
Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine 2
Applications
  • Automotive Air Filters
  • Cabin Filters
  • Industrial Dust Filters
  • Air Purification Filters
  • HEPA Filter Production Lines
Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine 3 Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine 4 Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine 5
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is strategically located in Bengbu, China—a major transportation hub and industrial center. Our company specializes in the research, development, design, and manufacturing of advanced filter production equipment, delivering practical and efficient solutions that meet both domestic market demands and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
We prioritize product quality and comprehensive service to enhance your brand's competitive edge in global markets. Tongchen Technology is committed to becoming your most reliable mechanical solutions provider and long-term business partner.
Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine 6 Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine 7 Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine 8
