High Quality CNC Pleating & Slitting Paper Folding Machine Full-Automatic Production Line with Knife Type Grade Automatic

1
MOQ
26890
가격
High Quality CNC Pleating & Slitting Paper Folding Machine Full-Automatic Production Line with Knife Type Grade Automatic
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
강조하다:

CNC pleating machine full-automatic

,

HEPA filter pleating machine with knife

,

automatic paper folding production line
기본 정보
원래 장소: 중국
브랜드 이름: TONGCHEN
인증: ISO
모델 번호: TC-A3254
결제 및 배송 조건
포장 세부 사항: 나무 케이스 포장
배달 시간: 5-40일
지불 조건: t/t
공급 능력: 56
제품 설명
High Quality CNC Pleating & Slitting Paper Folding Machine Full-Automatic Production Line with Knife Type Grade Automatic
High Quality CNC Pleating & Slitting Paper Folding Machine Full-Automatic Production Line with Knife Type Grade Automatic 0
Product Overview

This high-efficiency full-automatic CNC knife paper pleating machine is designed for air filter production, featuring touch screen control and multiple width options for versatile applications.

Key Features
  • Full-automatic operation with CNC precision
  • Knife-type grade automatic folding system
  • Touch screen control interface
  • Multiple effective width options available
  • High folding speed up to 80 folds per minute
  • Designed for cabin air filter production
  • 1-year warranty included
Technical Specifications
Specification Details
Working Voltage AC380V or 220V
Machine Power 1.5KW
Maximum Folding Speed 80 folds/min
Effective Width Options 650mm, 850mm, 1050mm, 1250mm, 1550mm, 2050mm, 2600mm, 3100mm, 3500mm
Folding Height Range 13-50 mm
Control Mode Touch screen control
Application Cabin air filter producing
Warranty 1 year
Additional Details
Brand: TONGCHEN
Place of Origin: ANHUI, China
Machine Dimensions: 14.975m (L) × 2.2m (W) × 2.9m (H)
Platform Height: 600mm
Cycle Time: 15-30 minutes
Key Advantage: Labor saving with high efficiency

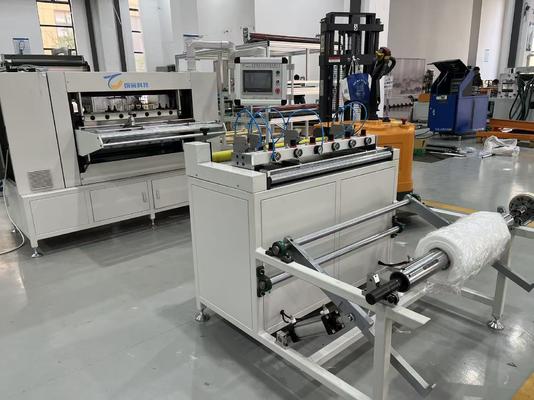

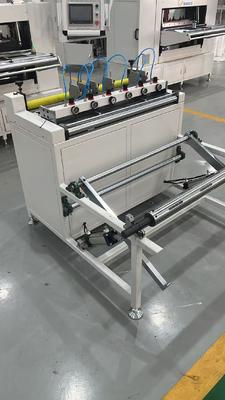

Product Images
High Quality CNC Pleating & Slitting Paper Folding Machine Full-Automatic Production Line with Knife Type Grade Automatic 1 High Quality CNC Pleating & Slitting Paper Folding Machine Full-Automatic Production Line with Knife Type Grade Automatic 2 High Quality CNC Pleating & Slitting Paper Folding Machine Full-Automatic Production Line with Knife Type Grade Automatic 3 High Quality CNC Pleating & Slitting Paper Folding Machine Full-Automatic Production Line with Knife Type Grade Automatic 4
Packaging & Delivery

Selling Units: Single item
